EXSYS Pci-Express Bus To 4X Pci

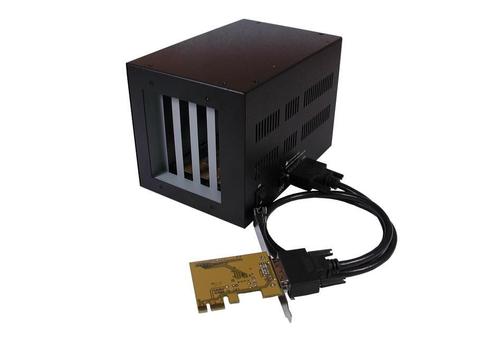

The EX-1010 PCI Express to Quad PCI Slots Expansion Box is specially designed to expand 4 extra PCI slots from a PCI Express Slot. It
includes a PCI-e adapter card, a cable and the slot box itself. The box is powered by a 12VDC AC adapter. It provides instant PCI bus
expansion via the PCI Express Bus (PCIe) from the Motherboard. The maximum power consumption per PCI slot is limited to
200mA.
- Expands 4 PCI 32-bit 33MHZ Slots over PCI Express Slot
- Supports both 5V and 3.3V Add-in Cards
- Fully Compliant with PCI Express Base, PCI Slots are fully Compliant PCI Bus Rev. 2.3, Specifications, Revision 1.0a
- PCI Express Advanced Error Reporting, Capability Including ECRC Support
- Metal Case for Critical Applications
- Extended Virtual Channel (VC) Support, Includes a Second VC for Quality-of-Service and
- Active State Link Power Management Support, Wake Event and Beacon Support
- Low Profile bracket with a maximum high of 8cm will included in the package
- 12VDC AC Power Adapter is Required
